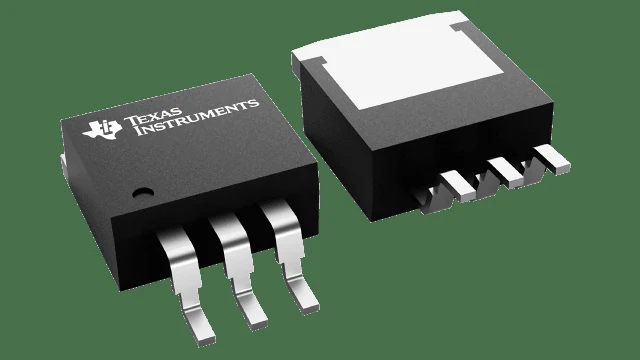

LM1117-3.3
Technical datasheet, operating ranges, and workbench specifications for LM1117-3.3 manufactured by Texas Instruments.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for LM1117-3.3 manufactured by Texas Instruments.
Image could not be loaded.| Category | Linear Regulator |
|---|---|
| Manufacturer | Texas Instruments |
| Voltage Min | 4.75 |
| Voltage Max | 15.0 |
| Logic Level | 3.3V |
| Pins | 3 |
| Form Factor | SOT-223 |
| Software Support | TI WEBENCH |
| Current Draw | 5mA IQ |
These are unverified user contributions, separate from the manufacturer specifications above. Check the official datasheet before relying on technical advice.
