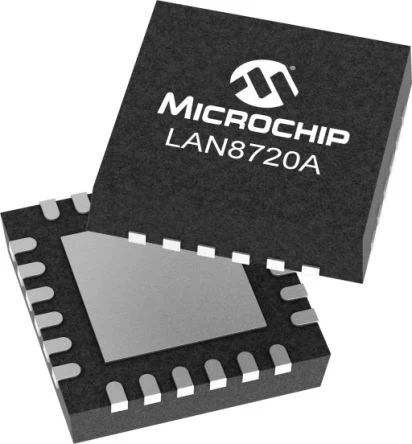

LAN8720A-CP-TR
Technical datasheet, operating ranges, and workbench specifications for LAN8720A-CP-TR manufactured by Microchip.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for LAN8720A-CP-TR manufactured by Microchip.
Image could not be loaded.| Category | Ethernet PHY |
|---|---|
| Manufacturer | Microchip |
| Voltage Min | 1.62 |
| Voltage Max | 3.6 |
| Logic Level | RMII |
| Pins | 24 |
| Interface | RMII |
| Form Factor | QFN-24 |
| Software Support | Arduino/STM32/Linux |
| Current Draw | ~70 mA |
