Dual H-Bridge Motor Driver | STMicroelectronics

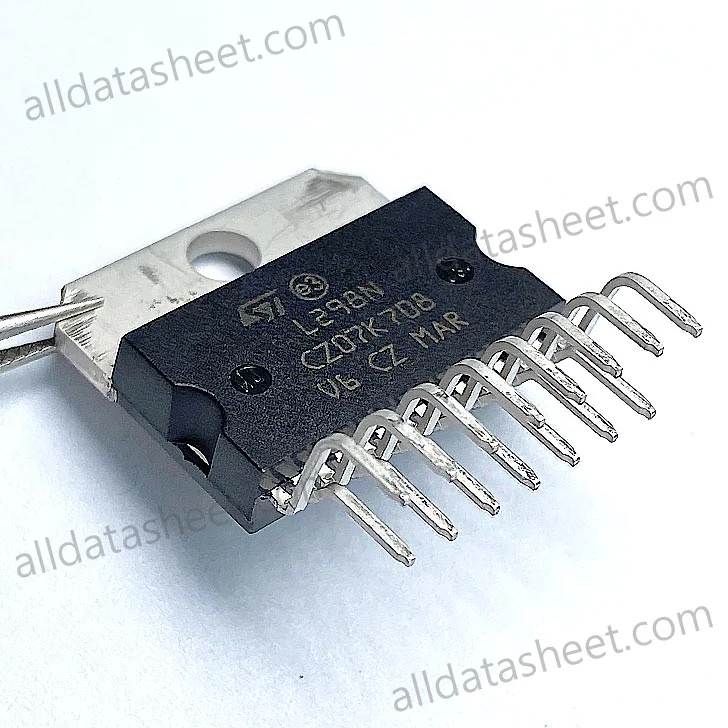

L298N
Technical datasheet, operating ranges, and workbench specifications for L298N manufactured by STMicroelectronics.

Component image could not be loaded.
Complete Component Specifications
| Category | Dual H-Bridge Motor Driver |
|---|---|
| Manufacturer | STMicroelectronics |
| Voltage Min | 4.5 |
| Voltage Max | 46.0 |
| Logic Level | 5V Logic |
| Pins | 15 |
| Interface | PWM, Parallel Control |
| Form Factor | Module |
| Software Support | Arduino |
| Current Draw | 36mA quiescent |
