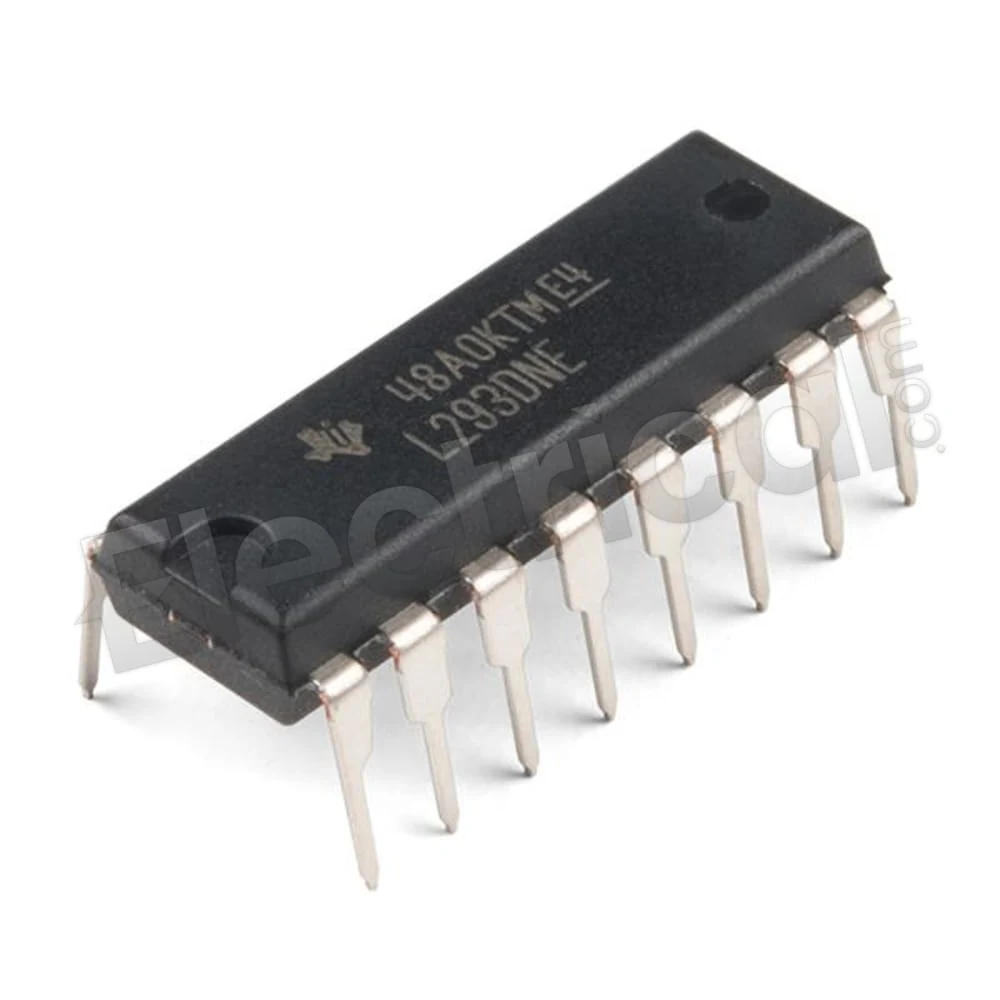

L293DNE
Technical datasheet, operating ranges, and workbench specifications for L293DNE manufactured by Texas Instruments.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for L293DNE manufactured by Texas Instruments.
Image could not be loaded.| Category | Motor Driver |
|---|---|
| Manufacturer | Texas Instruments |
| Voltage Min | 4.5 |
| Voltage Max | 36.0 |
| Logic Level | 5V TTL |
| Pins | 16 |
| Interface | Parallel |
| Form Factor | DIP-16 |
| Software Support | Arduino/Linux |
| Current Draw | 22mA typical |
These are unverified user contributions, separate from the manufacturer specifications above. Check the official datasheet before relying on technical advice.
