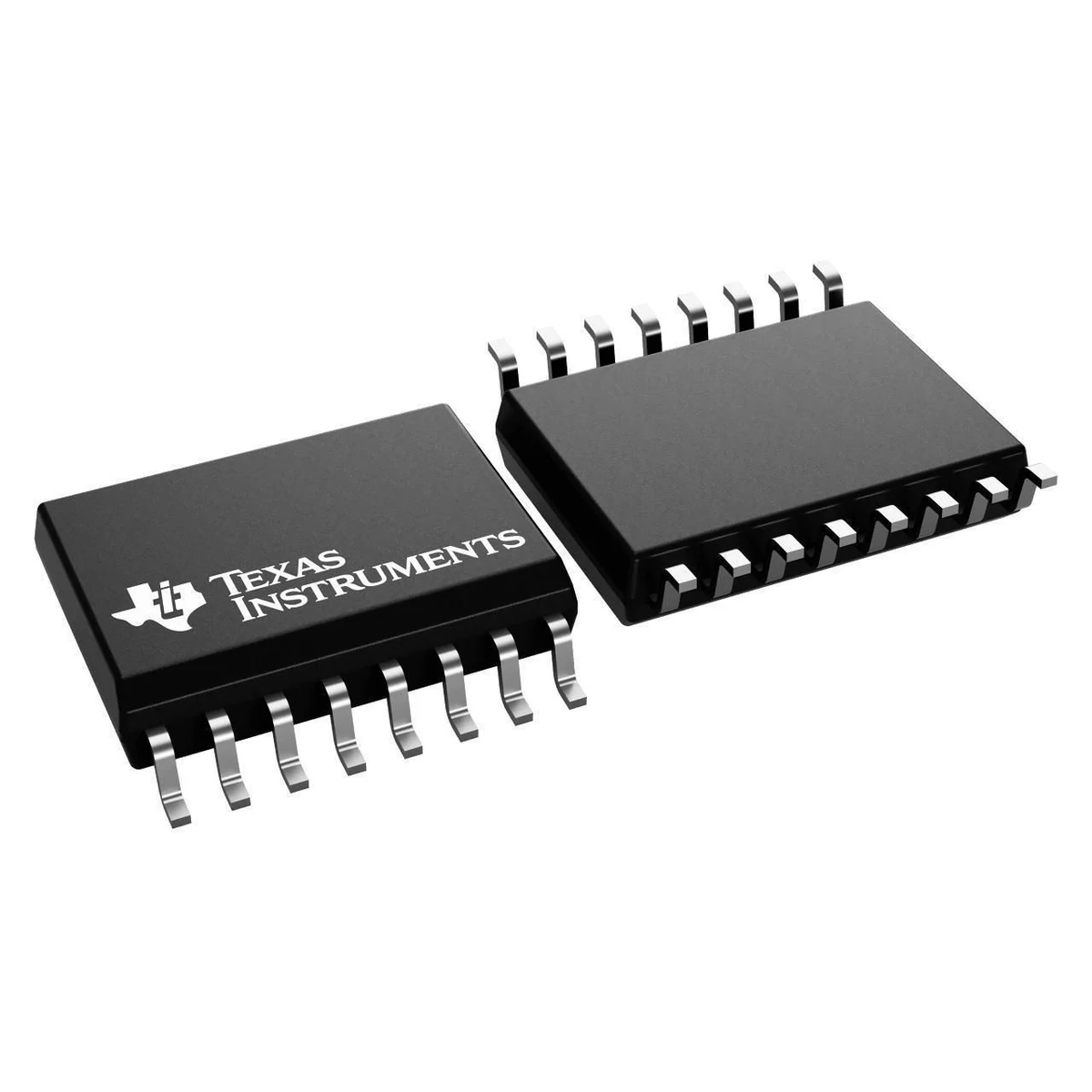

ISO7741FD
Technical datasheet, operating ranges, and workbench specifications for ISO7741FD manufactured by Texas Instruments.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for ISO7741FD manufactured by Texas Instruments.
Image could not be loaded.| Category | Digital Isolator |
|---|---|
| Manufacturer | Texas Instruments |
| Voltage Min | 2.25 |
| Voltage Max | 5.5 |
| Logic Level | 1.8V/3.3V/5V |
| Pins | 16 |
| Interface | Digital Isolation |
| Form Factor | SOIC-16 |
| Software Support | Arduino/ESP32/STM32 |
| Current Draw | ~1.5 mA/channel |
These are unverified user contributions, separate from the manufacturer specifications above. Check the official datasheet before relying on technical advice.
