Digital Isolator | Texas Instruments

ISO1540DR

Technical datasheet, operating ranges, and workbench specifications for ISO1540DR manufactured by Texas Instruments.

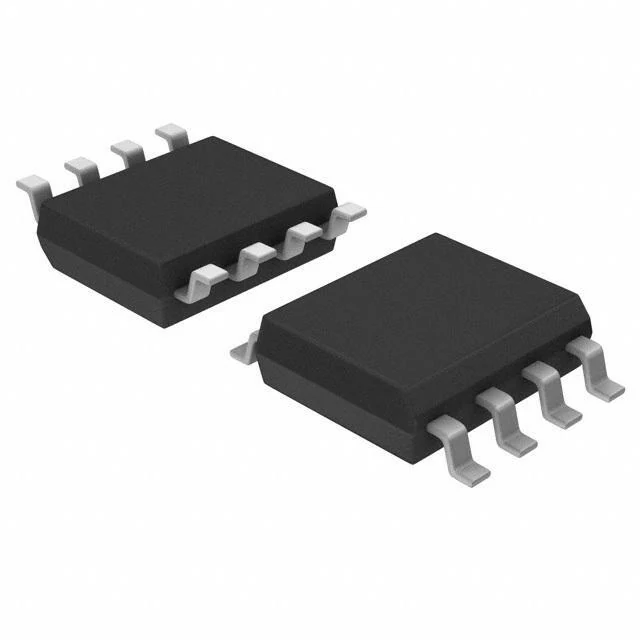

ISO1540DR component photo

Complete Component Specifications

CategoryDigital Isolator
ManufacturerTexas Instruments
Voltage Min2.7
Voltage Max5.5
Logic LevelI2C
Pins8
InterfaceI2C
Form FactorSOIC-8
Software SupportN/A
Current Draw~1 mA/channel
