Current Sense Amplifier | Texas Instruments

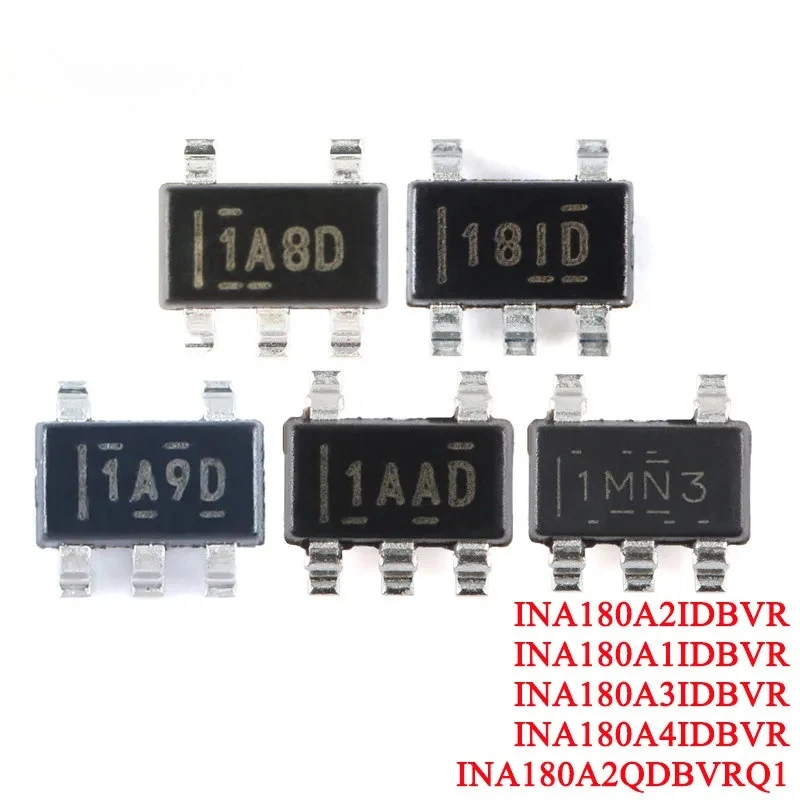

INA180A1IDBVR
Technical datasheet, operating ranges, and workbench specifications for INA180A1IDBVR manufactured by Texas Instruments.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for INA180A1IDBVR manufactured by Texas Instruments.
Image could not be loaded.| Category | Current Sense Amplifier |
|---|---|
| Manufacturer | Texas Instruments |
| Voltage Min | 2.7 |
| Voltage Max | 5.5 |
| Logic Level | Analog |
| Pins | 5 |
| Interface | Analog |
| Form Factor | SOT-23-5 |
| Software Support | Arduino;STM32 |
| Current Draw | 260 uA |
These are unverified user contributions, separate from the manufacturer specifications above. Check the official datasheet before relying on technical advice.
