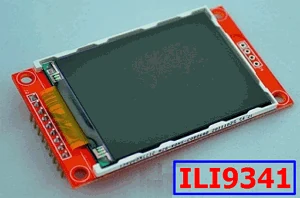

ILI9341
Technical datasheet, operating ranges, and workbench specifications for ILI9341 manufactured by ILITEK.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for ILI9341 manufactured by ILITEK.
Image could not be loaded.| Category | Display Controller |
|---|---|
| Manufacturer | ILITEK |
| Voltage Min | 2.4 |
| Voltage Max | 3.6 |
| Logic Level | 3.3V |
| Pins | 28 |
| Interface | SPI/Parallel |
| Form Factor | QFN-28 |
| Software Support | Arduino/Linux |
| Current Draw | 5mA typical |
