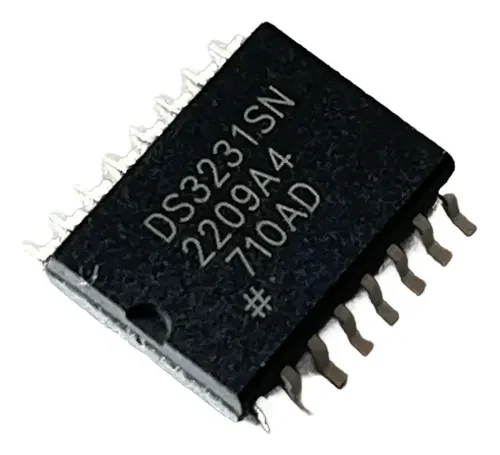

DS3231SN
Technical datasheet, operating ranges, and workbench specifications for DS3231SN manufactured by Analog Devices.

Component image could not be loaded.
Complete Component Specifications
| Category | RTC |
|---|---|
| Manufacturer | Analog Devices |
| Voltage Min | 2.3 |
| Voltage Max | 5.5 |
| Logic Level | 1.8-5V |
| Pins | 16 |
| Interface | I2C |
| Form Factor | SOIC-16 |
| Software Support | Arduino/Linux |
| Current Draw | 100uA typical |
