DS1307Z
Technical datasheet, operating ranges, and workbench specifications for DS1307Z manufactured by Analog Devices.

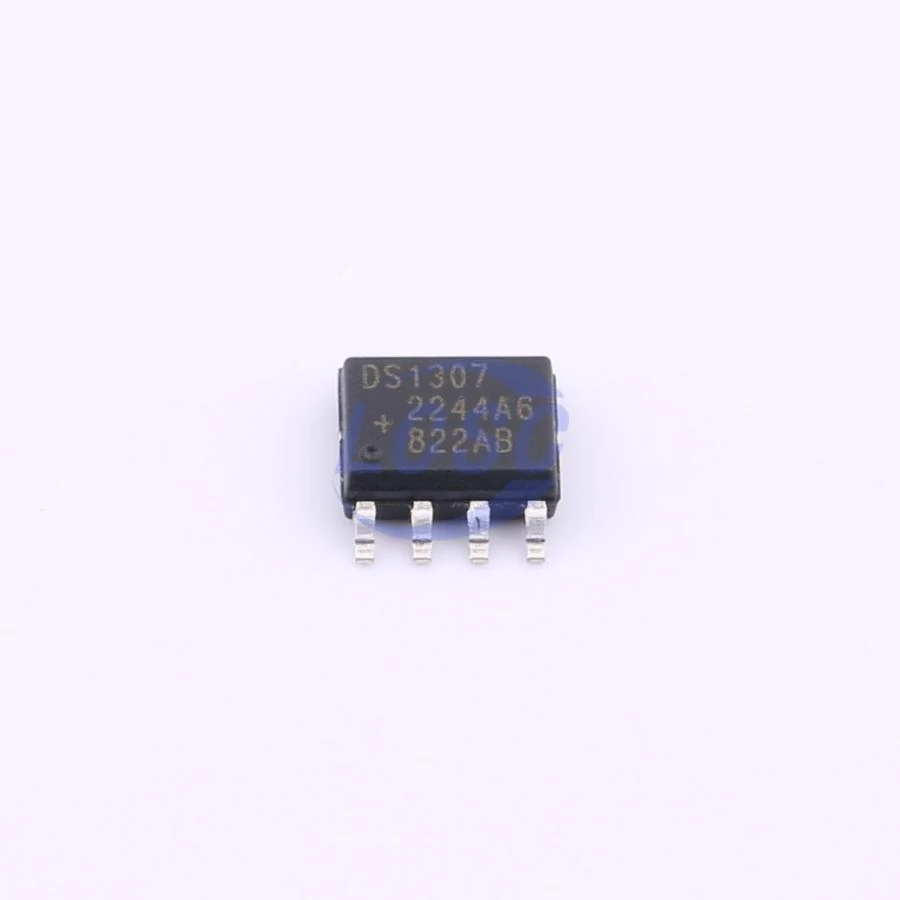

Component image could not be loaded.
Complete Component Specifications
| Category | RTC |
|---|---|
| Manufacturer | Analog Devices |
| Voltage Min | 4.5 |
| Voltage Max | 5.5 |
| Logic Level | I2C |
| Pins | 8 |
| Interface | I2C |
| Form Factor | SOIC-8 |
| Software Support | Arduino libraries |
| Current Draw | ~200 uA |
