3-Phase Gate Driver | Texas Instruments

DRV8305NQPHPRQ1

Technical datasheet, operating ranges, and workbench specifications for DRV8305NQPHPRQ1 manufactured by Texas Instruments.

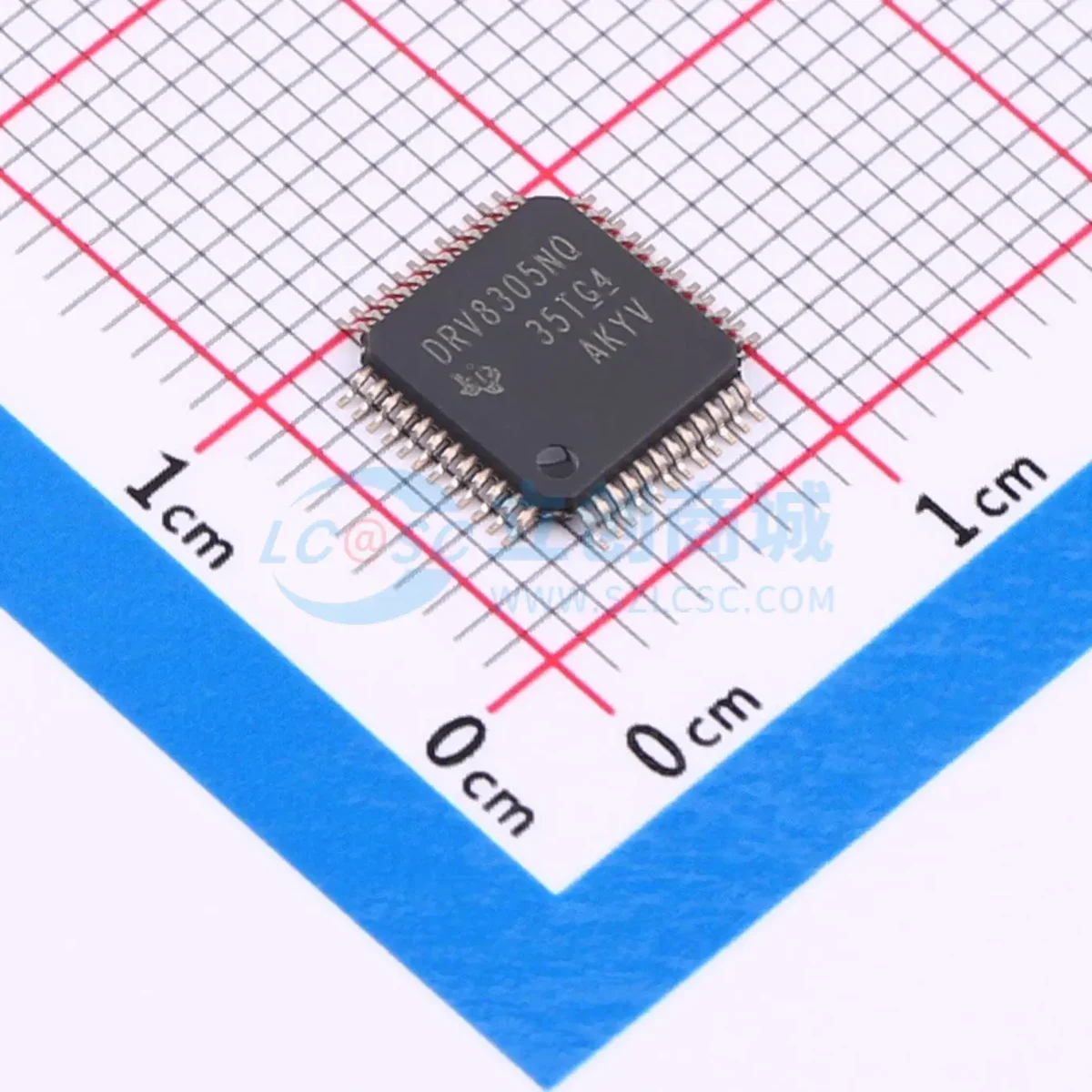

DRV8305NQPHPRQ1 component photo

Complete Component Specifications

Category3-Phase Gate Driver
ManufacturerTexas Instruments
Voltage Min4.4
Voltage Max45
Logic LevelPWM/SPI
Pins48
InterfaceSPI/PWM
Form FactorHTSSOP-48
Software SupportArduino/STM32
Current Draw~5 mA logic
