N-Channel MOSFET | Texas Instruments

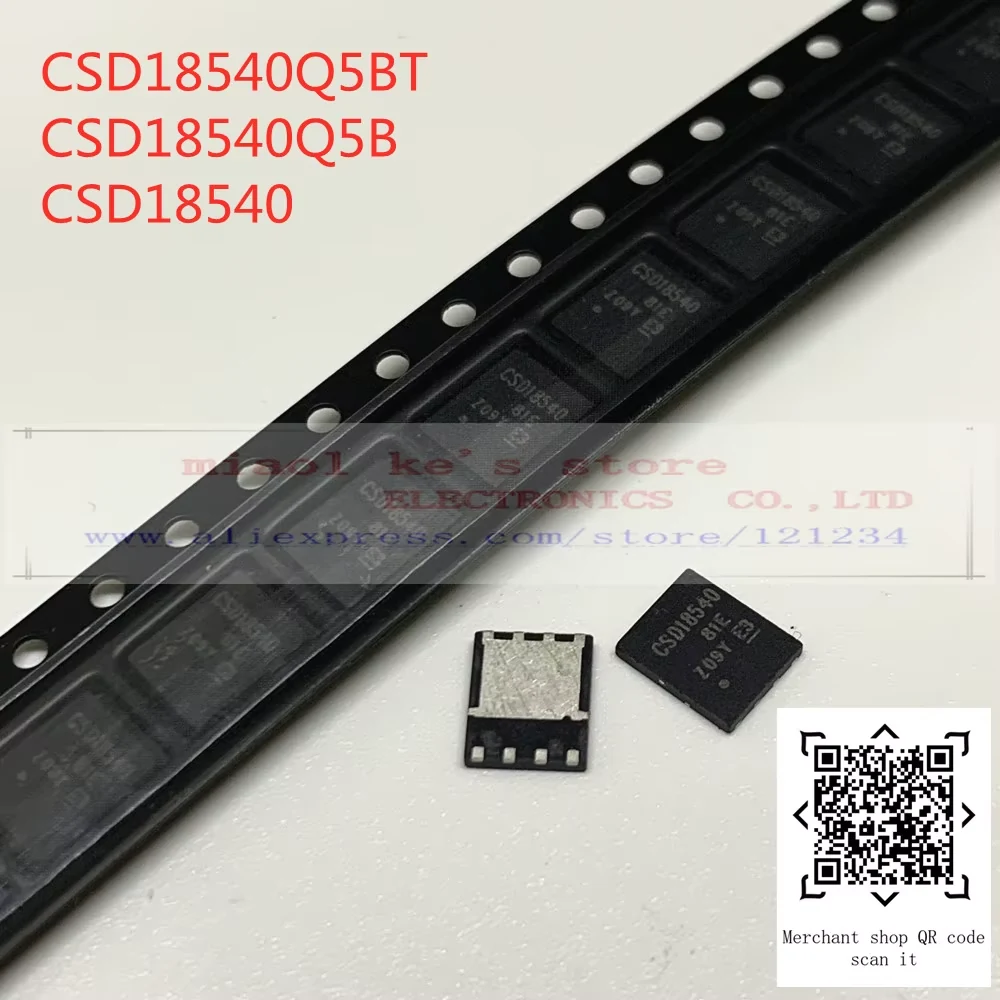

CSD18540Q5B
Technical datasheet, operating ranges, and workbench specifications for CSD18540Q5B manufactured by Texas Instruments.

Component image could not be loaded.
Complete Component Specifications
| Category | N-Channel MOSFET |
|---|---|
| Manufacturer | Texas Instruments |
| Voltage Min | 0 |
| Voltage Max | 60 |
| Logic Level | 4.5V gate |
| Pins | 8 |
| Interface | Switching Gate |
| Form Factor | SON-8 |
| Software Support | Arduino/ESP32 |
| Current Draw | low gate drive |
