Counter | Texas Instruments

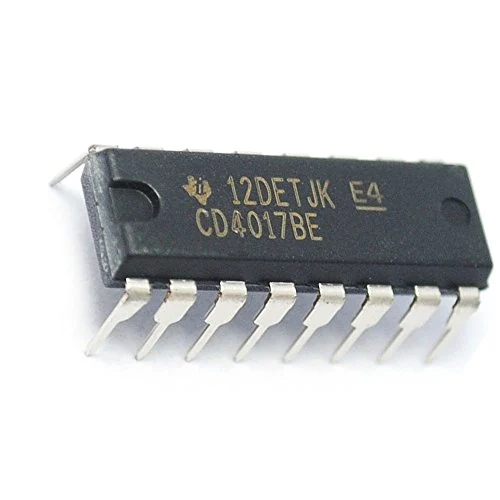

CD4017BE
Technical datasheet, operating ranges, and workbench specifications for CD4017BE manufactured by Texas Instruments.

Component image could not be loaded.
Complete Component Specifications
| Category | Counter |
|---|---|
| Manufacturer | Texas Instruments |
| Voltage Min | 3.0 |
| Voltage Max | 18.0 |
| Logic Level | CMOS |
| Pins | 16 |
| Interface | Clock |
| Form Factor | DIP-16 |
| Software Support | Generic |
| Current Draw | 10uA typical |
Amazon links are affiliate links. As an Amazon Associate I earn from qualifying purchases.
Projects using this part
- Ten-Step LED Chaser Beginner
