N-Channel Power MOSFET | Infineon

BSC009NE2LS5

Technical datasheet, operating ranges, and workbench specifications for BSC009NE2LS5 manufactured by Infineon.

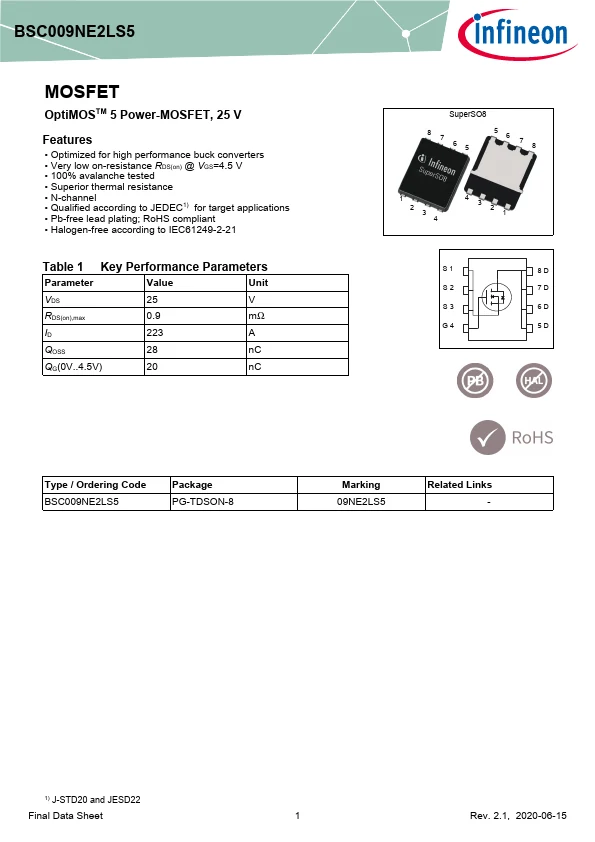

BSC009NE2LS5 component photo

Complete Component Specifications

CategoryN-Channel Power MOSFET
ManufacturerInfineon
Voltage Min0
Voltage Max25
Logic Level10V gate
Pins8
InterfaceSwitching Gate
Form FactorTDSON-8
Software SupportN/A
Current Drawhigh-current power switching
