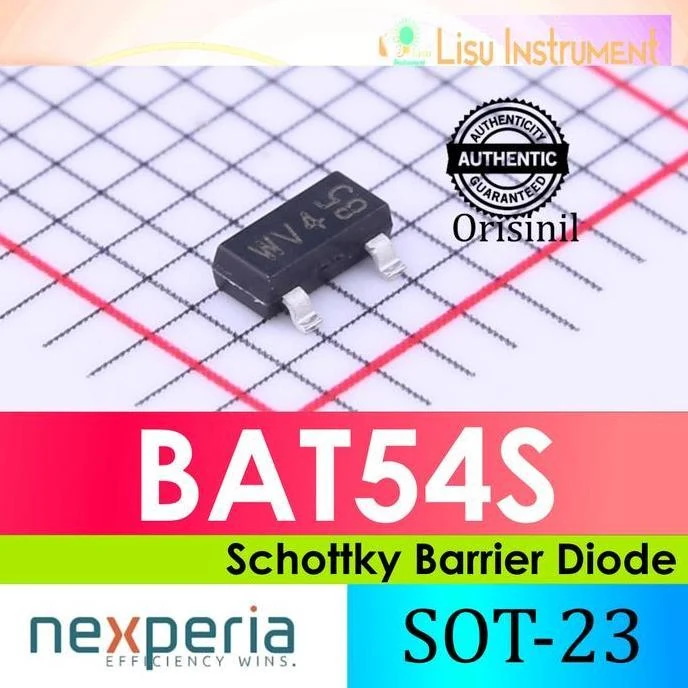

BAT54S
Technical datasheet, operating ranges, and workbench specifications for BAT54S manufactured by Nexperia.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for BAT54S manufactured by Nexperia.
Image could not be loaded.| Category | Schottky Diode |
|---|---|
| Manufacturer | Nexperia |
| Voltage Min | 0 |
| Voltage Max | 30 |
| Logic Level | N/A |
| Pins | 3 |
| Interface | N/A |
| Form Factor | SOT-23 |
| Software Support | N/A |
| Current Draw | ~0.1 mA test |
