Schottky Diode | Nexperia

BAT54C

Technical datasheet, operating ranges, and workbench specifications for BAT54C manufactured by Nexperia.

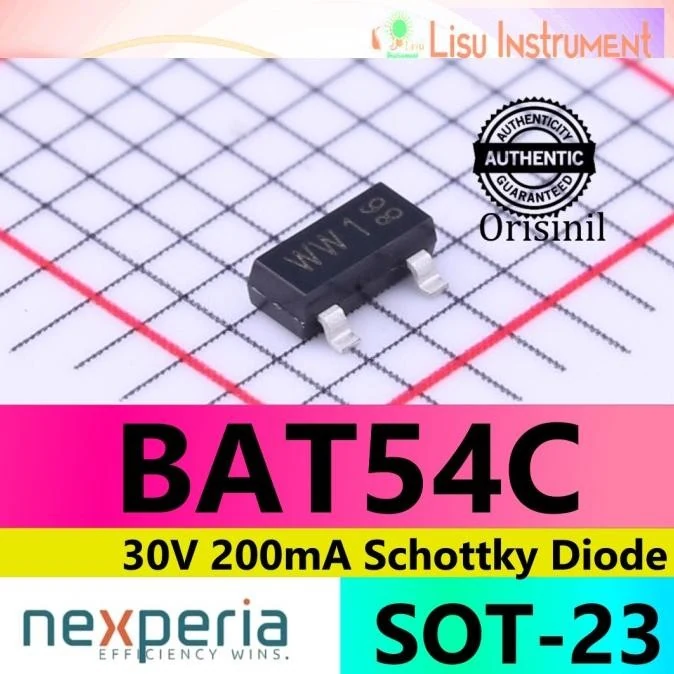

BAT54C component photo

Complete Component Specifications

CategorySchottky Diode
ManufacturerNexperia
Voltage Min0
Voltage Max30
Logic LevelN/A
Pins3
InterfaceN/A
Form FactorSOT-23
Software SupportN/A
Current Draw200 mA avg
