Schottky Diode | Nexperia

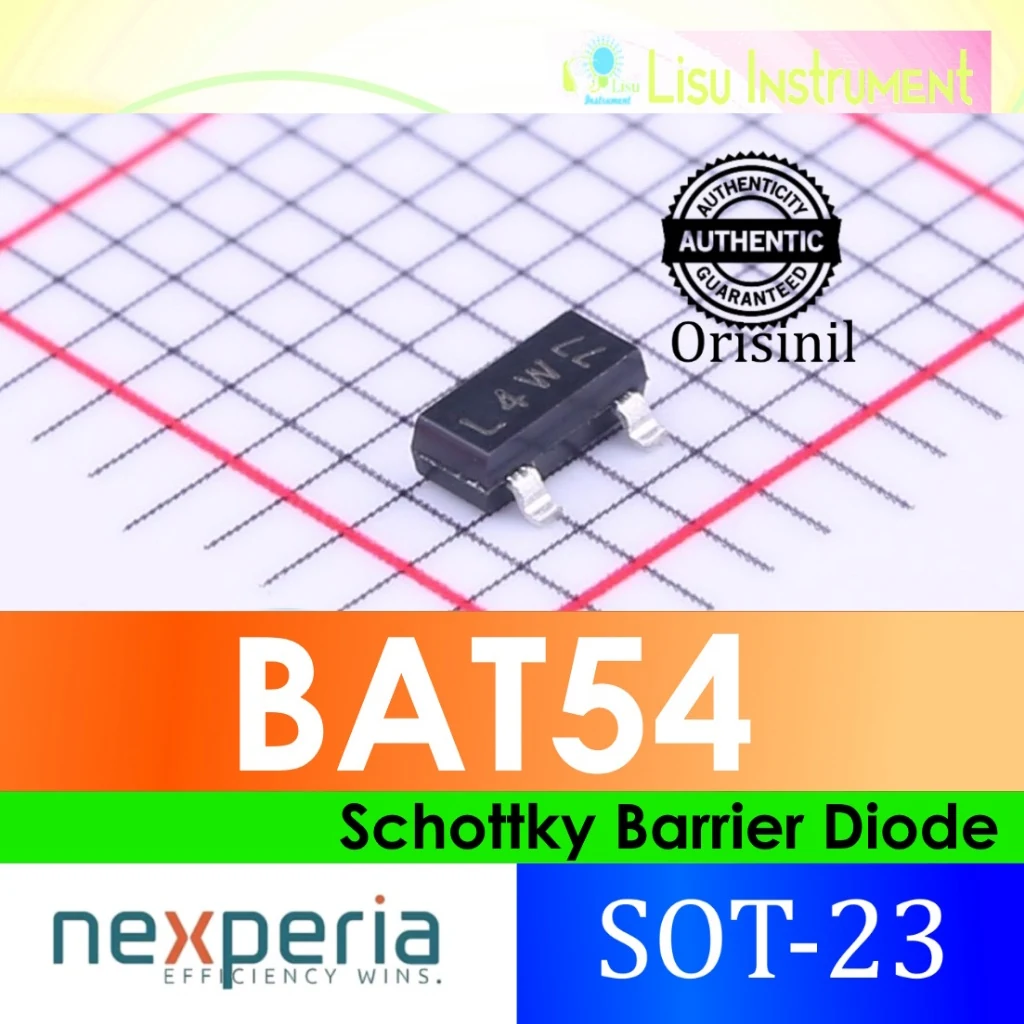

BAT54
Technical datasheet, operating ranges, and workbench specifications for BAT54 manufactured by Nexperia.

Component image could not be loaded.
Complete Component Specifications
| Category | Schottky Diode |
|---|---|
| Manufacturer | Nexperia |
| Voltage Min | 0 |
| Voltage Max | 30 |
| Logic Level | N/A |
| Pins | 2 |
| Interface | N/A |
| Form Factor | SOD-123 |
| Software Support | N/A |
| Current Draw | 200 mA avg |
