LDO Regulator | Advanced Monolithic Systems

AMS1117-3.3

Technical datasheet, operating ranges, and workbench specifications for AMS1117-3.3 manufactured by Advanced Monolithic Systems.

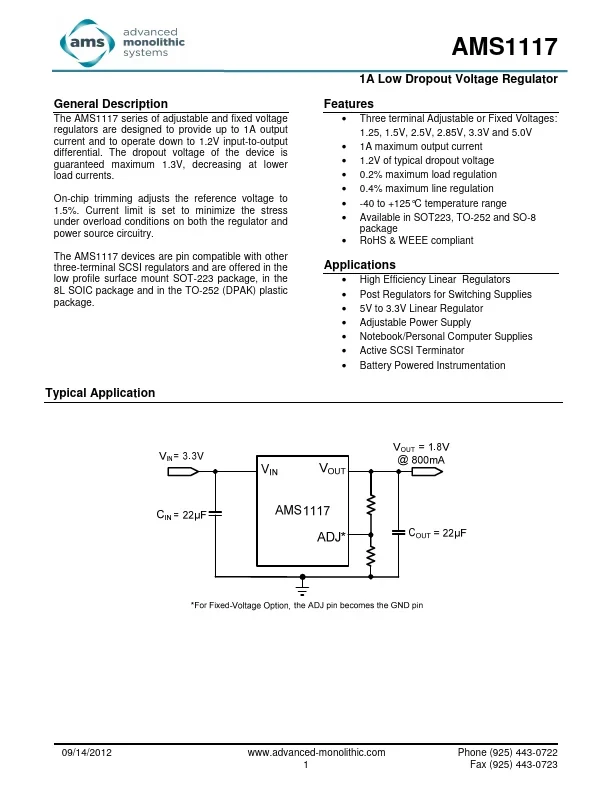

AMS1117-3.3 component photo

Complete Component Specifications

CategoryLDO Regulator
ManufacturerAdvanced Monolithic Systems
Voltage Min4.75
Voltage Max12
Logic LevelN/A
Pins3
InterfacePower
Form FactorSOT-223
Software SupportN/A
Current Draw~5 mA quiescent
