16-Bit ADC Converter | Texas Instruments
ADS1115
Technical datasheet, operating ranges, and workbench specifications for ADS1115 manufactured by Texas Instruments.

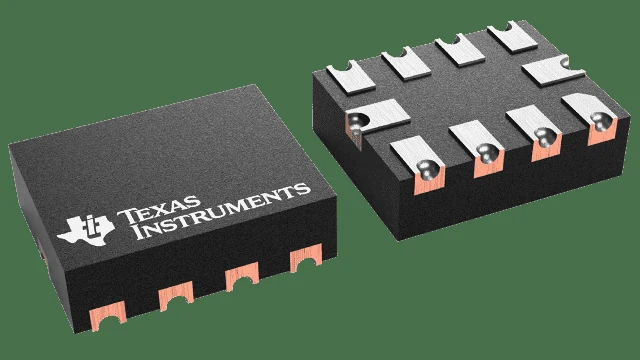

Component image could not be loaded.
Complete Component Specifications
| Category | 16-Bit ADC Converter |
|---|---|
| Manufacturer | Texas Instruments |
| Voltage Min | 2.0 |
| Voltage Max | 5.5 |
| Logic Level | 3.3V / 5V |
| Pins | 10 |
| Interface | I2C |
| Form Factor | Breakout Board |
| Software Support | Arduino (Adafruit_ADS1X15) |
| Current Draw | 150ยตA active |
