RS-485 Transceiver | Analog Devices

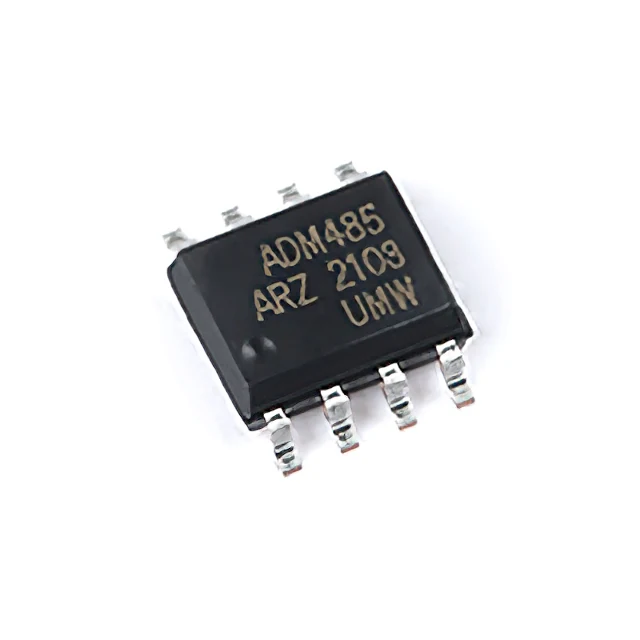

ADM485ARZ
Technical datasheet, operating ranges, and workbench specifications for ADM485ARZ manufactured by Analog Devices.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for ADM485ARZ manufactured by Analog Devices.
Image could not be loaded.| Category | RS-485 Transceiver |
|---|---|
| Manufacturer | Analog Devices |
| Voltage Min | 4.75 |
| Voltage Max | 5.25 |
| Logic Level | 5V TTL |
| Pins | 8 |
| Interface | RS-485 |
| Form Factor | SOIC-8 |
| Software Support | Arduino/STM32 |
| Current Draw | ~0.9 mA idle |
These are unverified user contributions, separate from the manufacturer specifications above. Check the official datasheet before relying on technical advice.
