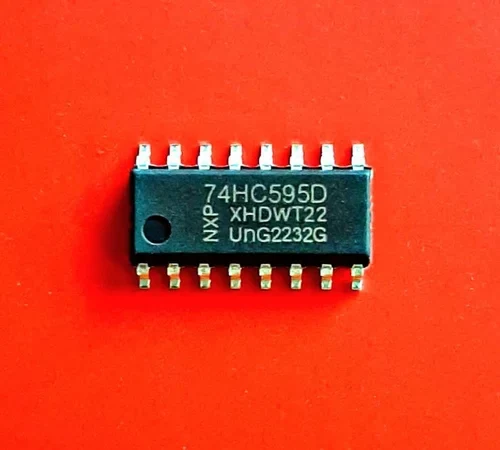

74HC595D
Technical datasheet, operating ranges, and workbench specifications for 74HC595D manufactured by Nexperia.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for 74HC595D manufactured by Nexperia.
Image could not be loaded.| Category | Shift Register |
|---|---|
| Manufacturer | Nexperia |
| Voltage Min | 2.0 |
| Voltage Max | 6.0 |
| Logic Level | CMOS |
| Pins | 16 |
| Interface | SPI-like |
| Form Factor | SOIC-16 |
| Software Support | Arduino;STM32 |
| Current Draw | <1 uA |
