Darlington Optocoupler | onsemi

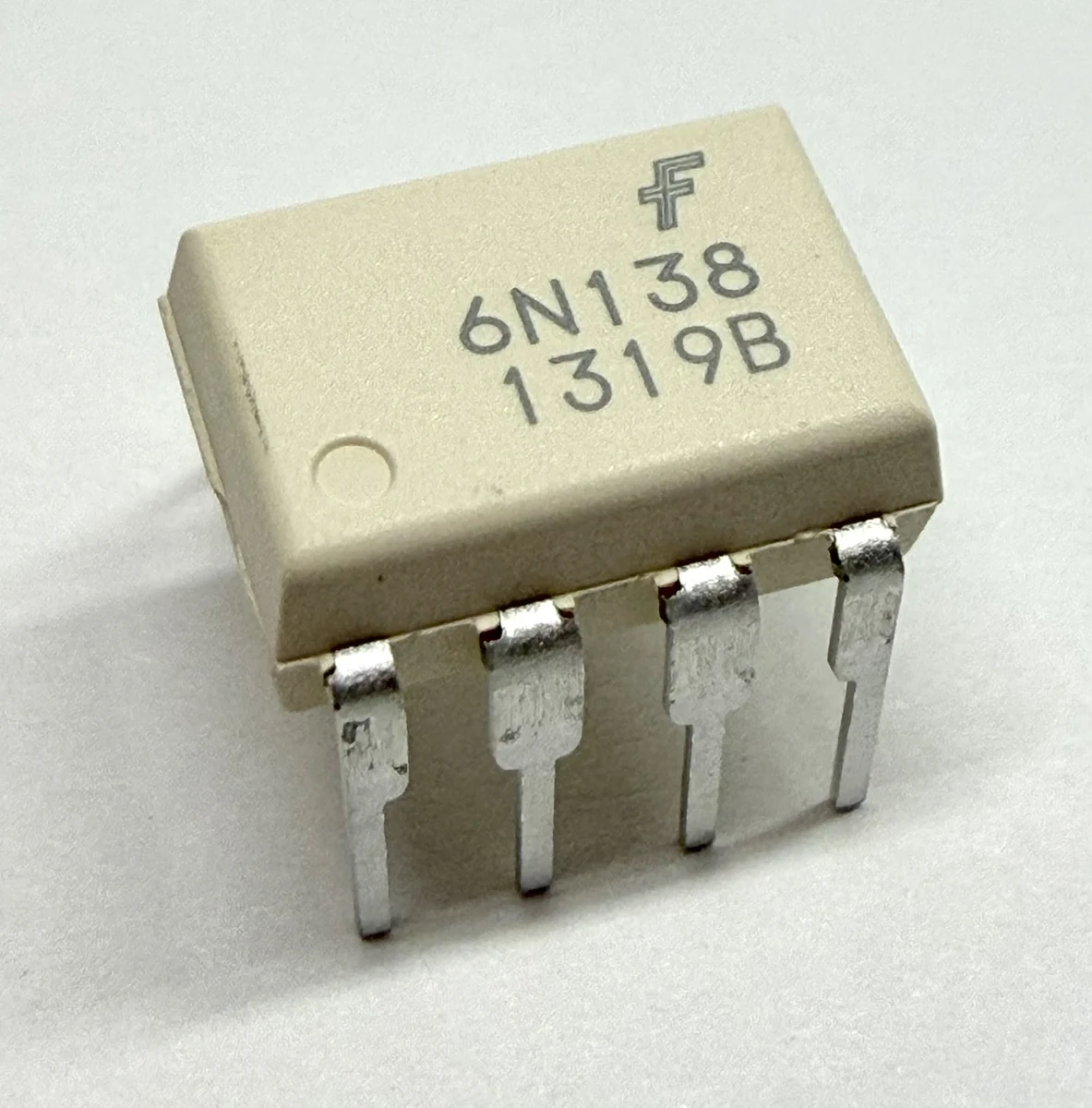

6N138
Technical datasheet, operating ranges, and workbench specifications for 6N138 manufactured by onsemi.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for 6N138 manufactured by onsemi.
Image could not be loaded.| Category | Darlington Optocoupler |
|---|---|
| Manufacturer | onsemi |
| Voltage Min | 4.5 |
| Voltage Max | 18 |
| Logic Level | TTL |
| Pins | 8 |
| Interface | Optocoupler |
| Form Factor | DIP-8 |
| Software Support | N/A |
| Current Draw | ~10 mA LED |
These are unverified user contributions, separate from the manufacturer specifications above. Check the official datasheet before relying on technical advice.
