High-Speed Optocoupler | onsemi
6N137
Technical datasheet, operating ranges, and workbench specifications for 6N137 manufactured by onsemi.

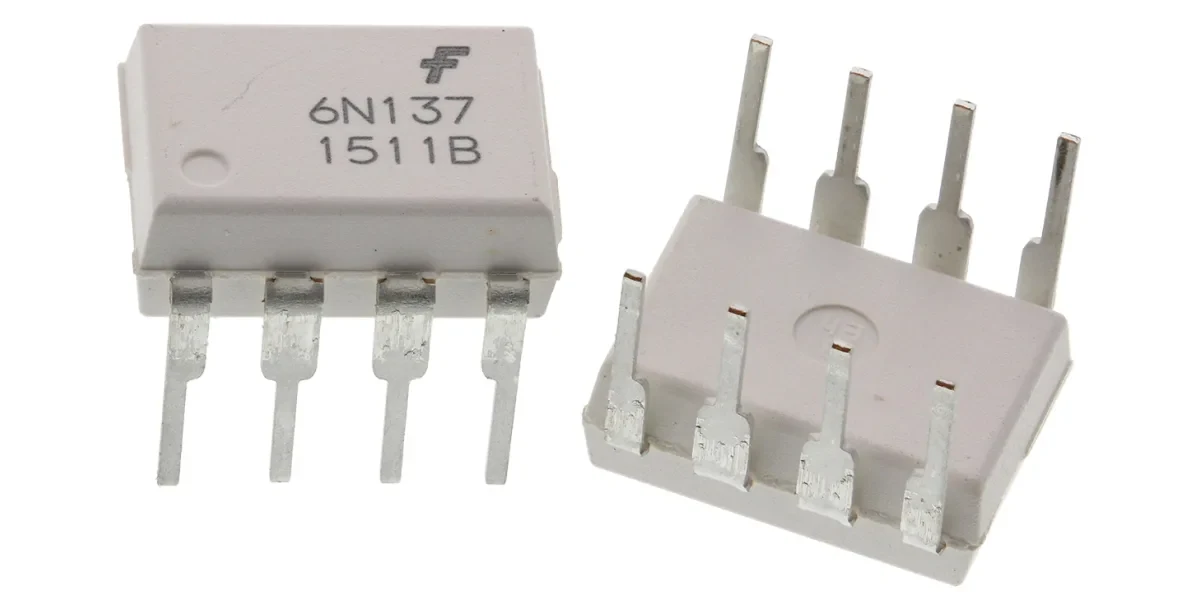

Component image could not be loaded.
Complete Component Specifications
| Category | High-Speed Optocoupler |
|---|---|
| Manufacturer | onsemi |
| Voltage Min | 4.5 |
| Voltage Max | 15 |
| Logic Level | TTL |
| Pins | 8 |
| Interface | Optocoupler |
| Form Factor | DIP-8 |
| Software Support | N/A |
| Current Draw | ~10 mA LED |
