NPN Transistor | onsemi

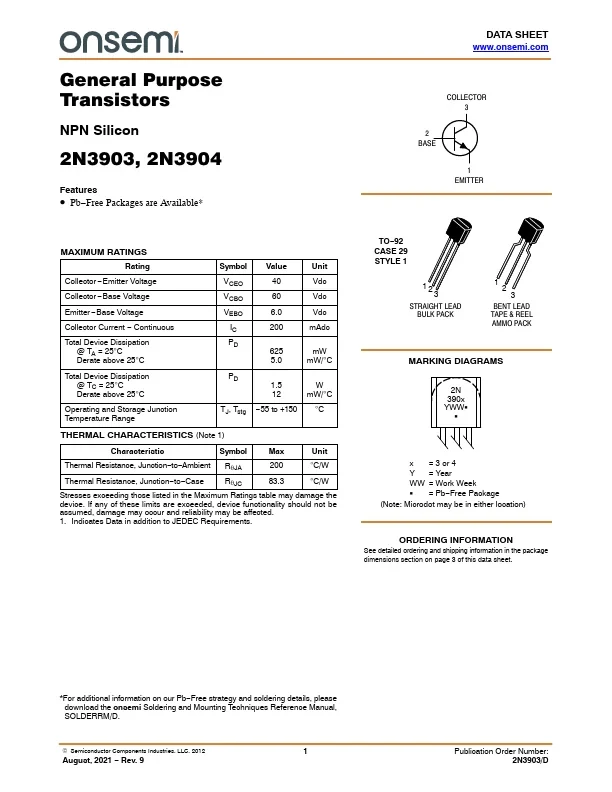

2N3904

Technical datasheet, operating ranges, and workbench specifications for 2N3904 manufactured by onsemi.

No local component image available yet.

Complete Component Specifications

CategoryNPN Transistor
Manufactureronsemi
Voltage Min0
Voltage Max40
Logic LevelN/A
Pins3
InterfaceGPIO/Analog
Form FactorTO-92
Software SupportN/A
Current Draw~1 mA base drive
