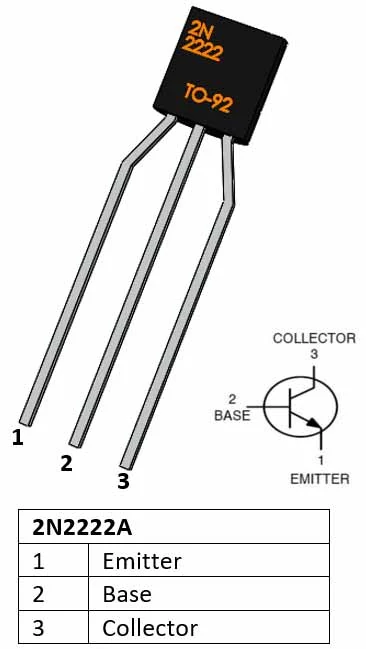

2N2222A
Technical datasheet, operating ranges, and workbench specifications for 2N2222A manufactured by onsemi.
Image could not be loaded.Image could not be loaded.Technical datasheet, operating ranges, and workbench specifications for 2N2222A manufactured by onsemi.
Image could not be loaded.| Category | NPN Transistor |
|---|---|
| Manufacturer | onsemi |
| Voltage Min | 0 |
| Voltage Max | 40 |
| Logic Level | N/A |
| Pins | 3 |
| Interface | GPIO/Analog |
| Form Factor | TO-92 |
| Software Support | N/A |
| Current Draw | ~1 mA base drive |
These are unverified user contributions, separate from the manufacturer specifications above. Check the official datasheet before relying on technical advice.
