1N4002

Technical datasheet, operating ranges, and workbench specifications for 1N4002 manufactured by onsemi.

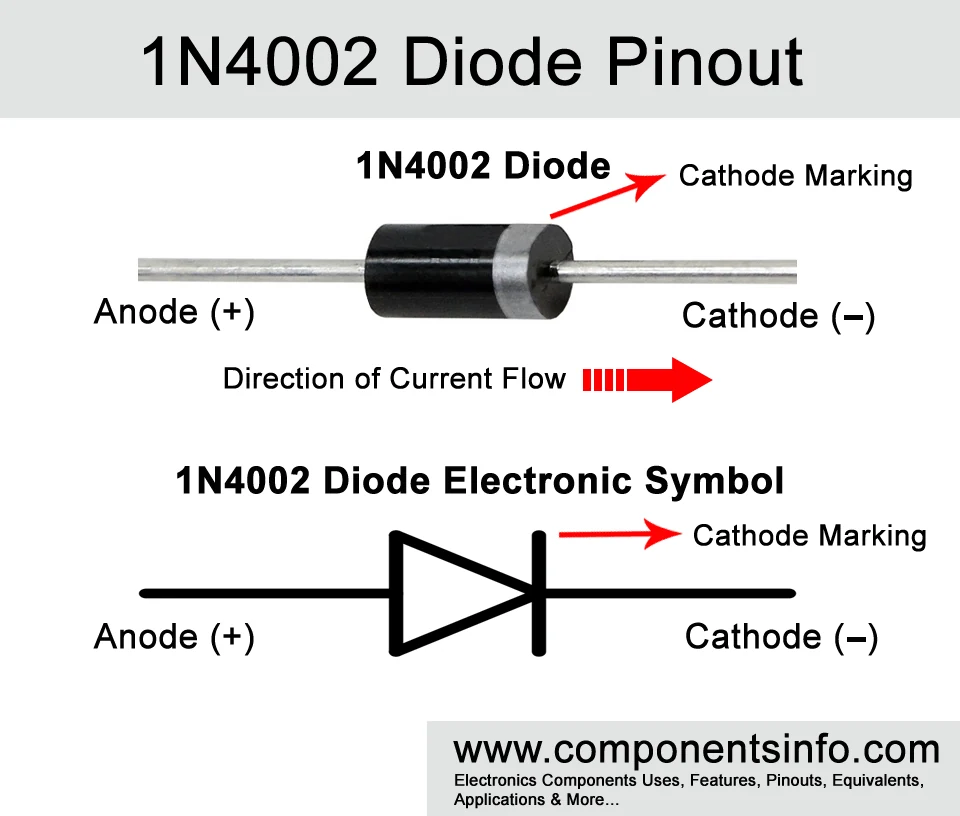

1N4002 component photo

Complete Component Specifications

CategoryDiode
Manufactureronsemi
Voltage Min0
Voltage Max100
Logic LevelN/A
Pins2
InterfaceN/A
Form FactorDO-41
Software SupportN/A
Current Draw1 A avg
