Rectifier Diode | onsemi

1N4001

Technical datasheet, operating ranges, and workbench specifications for 1N4001 manufactured by onsemi.

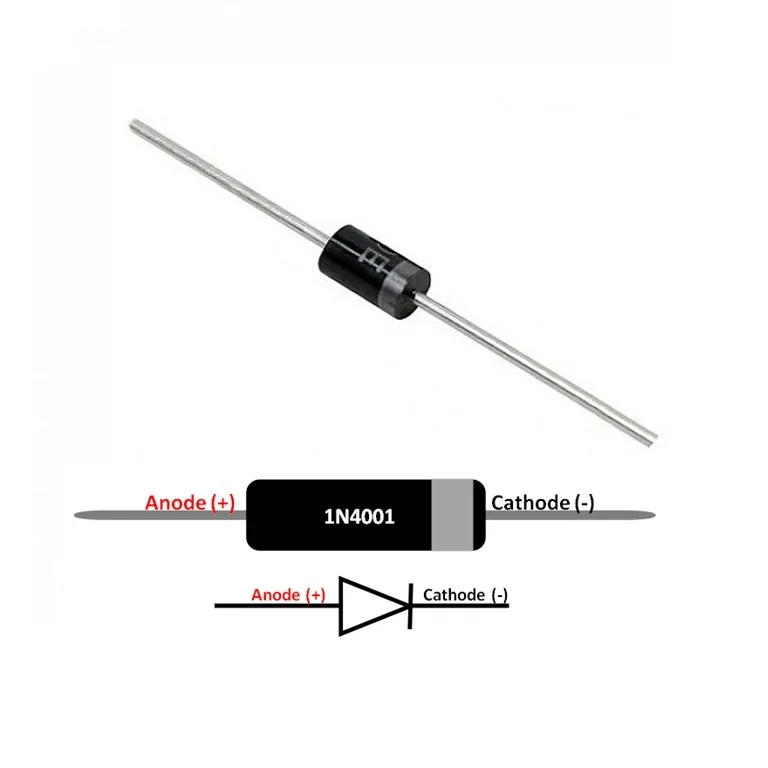

1N4001 component photo

Complete Component Specifications

CategoryRectifier Diode
Manufactureronsemi
Voltage Min0
Voltage Max50
Logic LevelN/A
Pins2
InterfaceN/A
Form FactorDO-41
Software SupportN/A
Current Draw~1 mA test
